[슈터게임] 4. UUserWidget 상속 / UWidgetTree::ConstrctWidget / BlueprintImplementableEvent 오버라이드

목표

1. HUD 내의 다양한 요소를 각각의 클래스로 나누고자 했다.

2. 기존 위젯 애니메이션 제어 방식을 개선하고자 했다. (FindFunction 함수 호출 최소화)

- 위젯 애니메이션 재생 및 종료 시점에 위젯 삭제 (WBP 그래프에서 Play Animation with Finished Event 노드 활용) 를 하기 위해 FindFunction 함수로 위젯 블루프린트 내에서 생성한 애니메이션 관련 이벤트를 실행시키는 것이 효율적이지 않다고 생각되어UUserWidget 를 상속한 클래스의 함수를 블루프린트에서 오버라이드 하여 실행하는 방식으로 구현해보고자 했다.



[프로세스]

1. 화면 상단 중앙에 띄울 알림 메세지 창을 UUserWidget 을 상속한 C++ 클래스 NotificationWidget 으로 구현

2. NotificationWidget 을 HUD 위젯 블루프린트 내에 배치

3. DisplayNotification 함수 호출 시 Vertical Box 생성 및 Vertical Box 의 Child 로 UTextBlock 2개 생성 (제목, 내용) 및 SetText

3. UFUNCTION(BlueprintImplementableEvent) 매크로를 활용해 FadeInOut 함수를 위젯 블루프린트 내에서 구현

4. 해당 함수는 애니메이션을 재생시키고 Finished 이벤트 발생 시 RemoveNotification 함수 호출

5. RemoveNotification 함수는 VerticalBox, UTextBlock 을 삭제



VerticalBox, TextBlock 등을 생성하기 위에 지난번과 달리 이번에는 UWidgetTree 의 ConstructWidget 함수를 사용해보았다.

(지난번 NewObject 함수로 TextBlock 을 생성했던 것은 아래 글에 적었었다.)

[언리얼/C++] 디버프 - 코드로 UTextBlock 동적 생성 및 추가



UWidgetTree / ConstructWidget 로 위젯 생성

UWidgetTree 는 블루프린트 위젯 내에 생성되는 모든 위젯의 콜렉션이다.

예를 들어 GetWidgetFromName 함수 호출 시 아래와 같이 WidgetTree 에서 FindWidget 함수로 찾는다.

// UserWidget.cpp
UWidget* UUserWidget::GetWidgetFromName(const FName& Name) const
{
	return WidgetTree ? WidgetTree->FindWidget(Name) : nullptr;
}

// WidgetTree.cpp
UWidget* UWidgetTree::FindWidget(const FName& Name) const
{
	UWidget* FoundWidget = nullptr;

	ForEachWidget([&] (UWidget* Widget) {
		if ( Widget->GetFName() == Name )
		{
			FoundWidget = Widget;
		}
	});

	return FoundWidget;
}



위에서 볼 수 있듯이 WidgetTree 는 UUserWidget 이 변수로 갖고 있다.

이 WidgetTree 에 ConstructWidget 함수로 특정 위젯 타입의 객체를 생성하고 이름 붙일 수 있다.

/** Constructs the widget, and adds it to the tree. */
template <typename WidgetT>
[[nodiscard]] FORCEINLINE_DEBUGGABLE WidgetT* ConstructWidget(TSubclassOf<WidgetT> WidgetClass = WidgetT::StaticClass(), FName WidgetName = NAME_None)
{
	if(WidgetClass != nullptr)
	{
		if constexpr(std::is_base_of_v<UUserWidget, WidgetT>)
		{
			return CreateWidget<WidgetT>(this, *WidgetClass, WidgetName);
		}
		else
		{
			static_assert(std::is_base_of_v<UWidget, WidgetT>, "WidgetTree::ConstructWidget can only create UWidget objects.");
			return NewObject<WidgetT>(this, WidgetClass, WidgetName, RF_Transactional);
		}
	}

	return nullptr;
}





사실 NewObject 의 오버로드된 함수들을 좀 자세히 확인해봤어야하는데 그 생각을 못했다.. ㅎㅎ...

this (WidgetTree), RF_Transactional (EObjectFlag 열거형에 정의된 값) 이라는 플래그를 인자로 전달하고 있는데...

둘 다 잘 모르는 개념이었다.



우선 해당 NewObject 함수의 정의는 아래와 같다.

/**
 * Convenience template for constructing a gameplay object
 *
 * @param	Outer		the outer for the new object.  If not specified, object will be created in the transient package.
 * @param	Class		the class of object to construct
 * @param	Name		the name for the new object.  If not specified, the object will be given a transient name via MakeUniqueObjectName
 * @param	Flags		the object flags to apply to the new object
 * @param	Template	the object to use for initializing the new object.  If not specified, the class's default object will be used
 * @param	bCopyTransientsFromClassDefaults	if true, copy transient from the class defaults instead of the pass in archetype ptr (often these are the same)
 * @param	InInstanceGraph						contains the mappings of instanced objects and components to their templates
 * @param	ExternalPackage						Assign an external Package to the created object if non-null
 *
 * @return	a pointer of type T to a new object of the specified class
 */
template< class T >
FUNCTION_NON_NULL_RETURN_START
	T* NewObject(UObject* Outer, const UClass* Class, FName Name = NAME_None, EObjectFlags Flags = RF_NoFlags, UObject* Template = nullptr, bool bCopyTransientsFromClassDefaults = false, FObjectInstancingGraph* InInstanceGraph = nullptr, UPackage* ExternalPackage = nullptr)
FUNCTION_NON_NULL_RETURN_END
{
// 어쩌구 저쩌구 ~ 전달받은 인자를 파라미터에 저장하고 Internal 함수를 호출한다
}





EObjectFlag 를 살펴보면 아래와 같았다...

/**
 * Flags describing an object instance
 * When modifying this enum, update the LexToString implementation!
 */
enum EObjectFlags
{
	// Do not add new flags unless they truly belong here. There are alternatives.
	// if you change any the bit of any of the RF_Load flags, then you will need legacy serialization
	RF_NoFlags					= 0x00000000,	///< No flags, used to avoid a cast

	// This first group of flags mostly has to do with what kind of object it is. Other than transient, these are the persistent object flags.
	// The garbage collector also tends to look at these.
	RF_Public					=0x00000001,	///< Object is visible outside its package.
	RF_Standalone				=0x00000002,	///< Keep object around for editing even if unreferenced.
	RF_MarkAsNative				=0x00000004,	///< Object (UField) will be marked as native on construction (DO NOT USE THIS FLAG in HasAnyFlags() etc)
	RF_Transactional			=0x00000008,	///< Object is transactional.
	RF_ClassDefaultObject		=0x00000010,	///< This object is used as the default template for all instances of a class. One object is created for each class
	RF_ArchetypeObject			=0x00000020,	///< This object can be used as a template for instancing objects. This is set on all types of object templates
	RF_Transient				=0x00000040,	///< Don't save object.

	// This group of flags is primarily concerned with garbage collection.
	RF_MarkAsRootSet			=0x00000080,	///< Object will be marked as root set on construction and not be garbage collected, even if unreferenced (DO NOT USE THIS FLAG in HasAnyFlags() etc)
	RF_TagGarbageTemp			=0x00000100,	///< This is a temp user flag for various utilities that need to use the garbage collector. The garbage collector itself does not interpret it.

	// The group of flags tracks the stages of the lifetime of a uobject
	RF_NeedInitialization		=0x00000200,	///< This object has not completed its initialization process. Cleared when ~FObjectInitializer completes
	RF_NeedLoad					=0x00000400,	///< During load, indicates object needs loading.
	RF_KeepForCooker			=0x00000800,	///< Keep this object during garbage collection because it's still being used by the cooker
	RF_NeedPostLoad				=0x00001000,	///< Object needs to be postloaded.
	RF_NeedPostLoadSubobjects	=0x00002000,	///< During load, indicates that the object still needs to instance subobjects and fixup serialized component references
	RF_NewerVersionExists		=0x00004000,	///< Object has been consigned to oblivion due to its owner package being reloaded, and a newer version currently exists
	RF_BeginDestroyed			=0x00008000,	///< BeginDestroy has been called on the object.
	RF_FinishDestroyed			=0x00010000,	///< FinishDestroy has been called on the object.

	// Misc. Flags
	RF_BeingRegenerated			=0x00020000,	///< Flagged on UObjects that are used to create UClasses (e.g. Blueprints) while they are regenerating their UClass on load (See FLinkerLoad::CreateExport()), as well as UClass objects in the midst of being created
	RF_DefaultSubObject			=0x00040000,	///< Flagged on subobject templates that were created in a class constructor, and all instances created from those templates
	RF_WasLoaded				=0x00080000,	///< Flagged on UObjects that were loaded
	RF_TextExportTransient		=0x00100000,	///< Do not export object to text form (e.g. copy/paste). Generally used for sub-objects that can be regenerated from data in their parent object.
	RF_LoadCompleted			=0x00200000,	///< Object has been completely serialized by linkerload at least once. DO NOT USE THIS FLAG, It should be replaced with RF_WasLoaded.
	RF_InheritableComponentTemplate = 0x00400000, ///< Flagged on subobject templates stored inside a class instead of the class default object, they are instanced after default subobjects
	RF_DuplicateTransient		=0x00800000,	///< Object should not be included in any type of duplication (copy/paste, binary duplication, etc.)
	RF_StrongRefOnFrame			=0x01000000,	///< References to this object from persistent function frame are handled as strong ones.
	RF_NonPIEDuplicateTransient	=0x02000000,	///< Object should not be included for duplication unless it's being duplicated for a PIE session
	// RF_Dynamic				=0x04000000,	///< Was removed along with bp nativization
	RF_WillBeLoaded				=0x08000000,	///< This object was constructed during load and will be loaded shortly
	RF_HasExternalPackage		=0x10000000,	///< This object has an external package assigned and should look it up when getting the outermost package
	// RF_Unused				=0x20000000,

	// RF_MirroredGarbage is mirrored in EInternalObjectFlags::Garbage because checking the internal flags is much faster for the Garbage Collector
	// while checking the object flags is much faster outside of it where the Object pointer is already available and most likely cached.
	RF_MirroredGarbage			=0x40000000,	///< Garbage from logical point of view and should not be referenced. This flag is mirrored in EInternalObjectFlags as Garbage for performance
	RF_AllocatedInSharedPage	=0x80000000,	///< Allocated from a ref-counted page shared with other UObjects
};

ㅋㅋ 엄청 기네;; 근데 잘 알아두면 액터와 달리 라이프사이클이 직접적으로 정해지지 않는 UObject 객체를 관리할 때 유용할 것도 같다.....?

위에서 말한 "Transactional" 플래그를 가진 오브젝트는 아래와 같은 특징을 갖는다고 한다.

Undo/Redo functionality:
The core function of a transaction is to enable users to easily undo or redo actions by grouping related changes together as a single transaction.

Multi-user editing:
When multiple users are working on the same level, each user's edits are sent as transactions to other users, allowing everyone to see the changes in real-time.

Explicit control with Blueprint nodes:
Developers can use specific Blueprint nodes like "Begin Transaction", "End Transaction", and "Transact Object" to define which actions should be part of a transaction.



음..........?.....알듯말듯ㅠ  일단 넘어가....



BlueprintImplementableEvent 오버라이드

이것이 무엇인지, 어떻게 활용하는지 아래에 간단히 잘 정리되어 있었다.

[UE5] C++와 블루프린트 연결 방법 (C++에서 Blueprint Event 시점 제어, BlueprintNativeEvent, BlueprintImplementabl

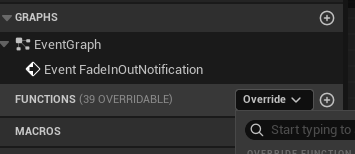

이렇게 만든 함수를 위젯 블루프린트 상에서 오버라이드하고 PlayAnimationWithFinishedEvent 노드를 활용해 삭제까지 잘 구현되게 했다.

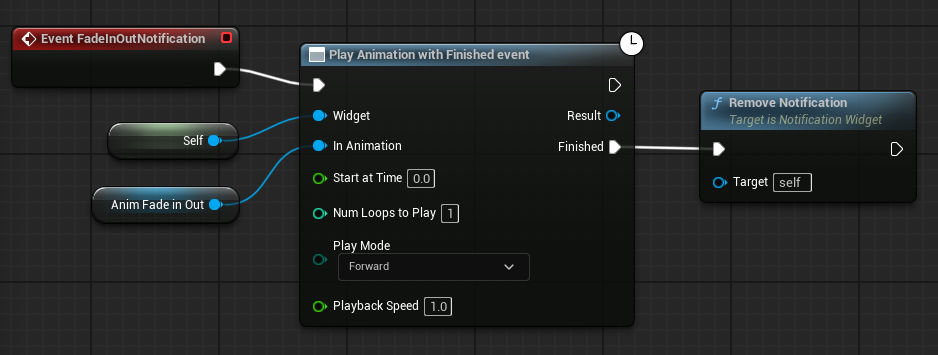

위젯 블루프린트의 그래프에서 위와 같이 해당 함수를 오버라이드하고 아래와 같이 스크립팅했다.



휴우우... WidgetTree 의 ConstructWidget 사용하는 것에 대해 검색도 잘 안되었고

뭔가 머리도 잘 안돌아가서 속도가 느린 하루였지만 그래도 해결되어서 다행이당.
